Float type level meters

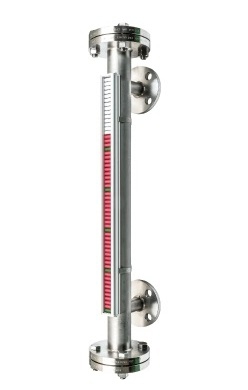

Magnetic liquid level gauge MC-50

A liquid level gauge that clearly displays the water level in the tank using the magnetic force of the float inside the gauge.

A special float is inserted into the liquid level inside the gauge (inside the column), and the rotor is rotated by a magnet to clearly display the liquid level position. The main body is made of SUS304 and has excellent corrosion resistance, and the length can be freely designed. If you want to output a 4-20mA signal for remote monitoring, etc., please refer to this (FXL/FXD level gauge type).

•

Teflon types and resin types that are acid and chemical resistant are also available.

Features, keys |Usage, use examples |Standard specifications

Features, keys

1. Structure that is easy to see and stain-resistant due to the color coding of the display surface

In magnetic liquid level gauges, a float inside the main unit rises and the rotor of the external indicator is rotated by magnetic force, so that the liquid phase becomes red and the gas phase becomes white. The rotor rotates 180 degrees from top to bottom, and as it rises, the color of the rotor changes from white to red. The rotor pitch changes to green every 100mm at 10mm intervals and serves as a guide to the height. The half-turn position is easy to see, so you can check the liquid level with a resolution of 5mm intervals.


2. Safety design that does not damage the gauge or leak
3. Long visible range and lightweight
4. Excellent pressure resistance, heat resistance, corrosion resistance, earthquake resistance, weather resistance

Usages, use examples

• Works across a wide range of liquids, (and can even measure after the liquid type is changed, or the electrical properties of the liquid change)
• Hash environments of extreme temperatures, and positions not easy to maintain or check.

Standard specifications
