Ultrasonic wave type level meters

YU-42 series
YU-42 series
Multi-functional ultrasonic level meter that can measure 2 channels.

*It has been discontinued. Corresponding as YU-45 series.

  • For liquid
  • For powder

For connections, screw-in and flange type connections are available with an angle adjustment function for powder and granulated materials.



Features, keys

  1. The sensor and amplifier are separated from each other. A multiple amplifier is employed that can measure two channels.
    It has good cost performance due to the multiple amplifiers.
    * When 1 channel is used, two lines can be output (8 alarms and 2 current outputs).
    * Using two channels, low cost level measurement is possible.
  2. Easy to adjust settings at fields
    A large LED is used for display. The display not only shows levels, but echo wave form and trend graphs. Therefore, it allows easy adjustment locally.
  3. Various functions for measurements
    By apply correlational processing to the received ultrasonic wave signals, external noise and external ultrasonic wave effects are decreased.
    Eco graph screen and trend screen are standard. Various process setting functions on these screens allow high stability in poor measuring conditions.


Connection examples and sensors

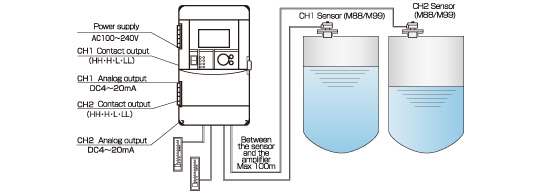

Connection examples

Connection examples Figure

Sensor

Model name M88-N M99-N M88-F M99-F M88-K M99-K
Photograph
Sensor material Polypropylene
Silicon
Epoxy

* PVDF
Polypropylene
Silicon
Epoxy

* PVDF
Polypropylene
Silicon
Epoxy

* PVDF
Connection type
(material)
Standard screw-in type Terminal box, with flange With angle adjuster
R1 G1 * JIS5K100A FF
(PVC)
* JIS5K100A FF
(SUS304)
Connection
case
Materials - Aluminum (AC4A-F) Paint: Munsell 7.5BG6/1.5
Protection level IP66 IP65
Weight Approx. 600g Approx. 1,700g Approx. 5,600g

* M99 is made of PVDF resin that offers excellent resistance to chemicals.
* Can be altered if required.



Usages, use examples

  • Measures liquids, powders, and granules continuously without contact
  • Measure corrosive and adhesive materials
    Ex.: Monitor city water level, sewage, drain liquid, chemical agents (acids, alkalis), slurry, storage tanks, silos, etc.


Standard specifications

Amplifier

* Measurement distance 0.3 to 12m
Power source required 100 to 240V AC
Power consumption 15 VA
Output Current 4 to 20mA DC X 2 lines (load resistance 60Ω)
Relay 4 X 2 lines Contact point capacity 250V AC, 30V DC 5A
(2 lines of power output when only 1 channel is used, 8 contact points can be used for relays)
Communication RS485 (Connectable up to 32 units)
RS232C
Measurement precision 0.25%F.S. or ±3cm, whichever is larger
Resolution 1mm
Measuring cycle 1.3 sec.
Operating temperature: -20 to +70 degrees
Case Materials Aluminum (AC4A-F) Painting color: Silver Window: Acrylic
Protection level IP55 or equivalent
Weight Approx. 3,500g

*: The nominal measuring distance is determined by the static water level used as a reflecting mirror. It may become shorter with various measuring conditions.
(Steam, condensation, waves, powder and granulated materials, etc.)

Sensor

Model name M88 M99
Ultrasonic wave frequency 40kHz
* Beam angle 12° 22°
Connection
(material)
Screw-in R1 G1
Flange JIS5K100AFF (PVC)
Angle adjustment JIS5K100AFF (SUS304)
Operating temperature -20 to 70 degrees
Sensor material Polypropylene
Silicon
Epoxy

* PVDF

* The actual measuring range is determined by each measuring condition.For details, contact to our staff.
* M99 is made of PVDF resin that offers excellent resistance to chemicals.
? A meter with a weir meter function is also available as optional.
